A highly opinionated Inkscape extension to generate living hinge patterns for laser-cut flexures. Several different patterns are available. Select any shape in your document, run the extension, choose the tab corresponding to the pattern you want to use, and apply.

Manual Installation

Create the subdirectory km-living-hinge/ in your Inkscape extensions folder:
- Linux: ~/.config/inkscape/extensions/
- Linux (Flatpak): ~/.var/app/org.inkscape.Inkscape/config/inkscape/extensions/
- Linux (Snap): ~/snap/inkscape/current/.config/inkscape/extensions/
- macOS: ~/Library/Application Support/org.inkscape.Inkscape/config/inkscape/extensions/
- Windows: %APPDATA%\\inkscape\\extensions\\
Copy files from this repo into your km-living-hinge/ directory.
Restart Inkscape. The extension appears under Extensions > Knox Makers > Laser > Living Hinge.

Patterns

Pattern	Preview

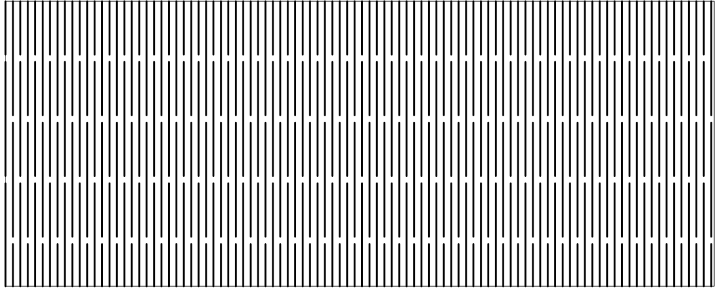

Line

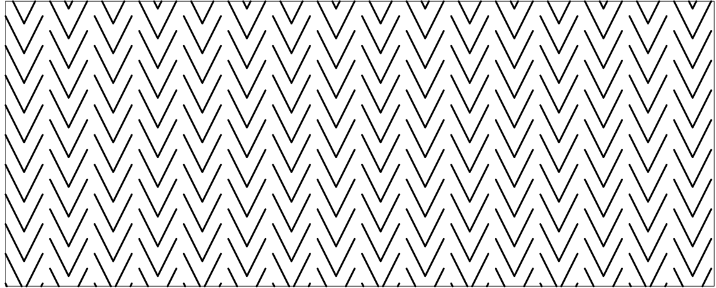

Fishbone

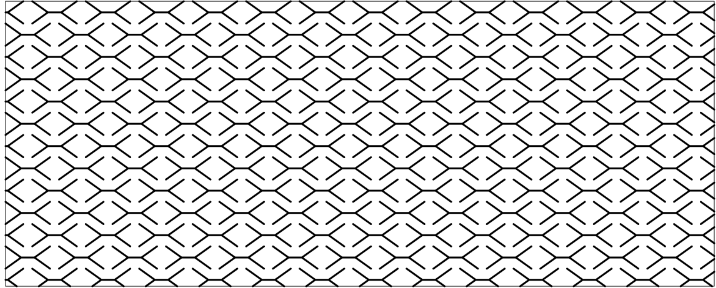

Cross
Bezier

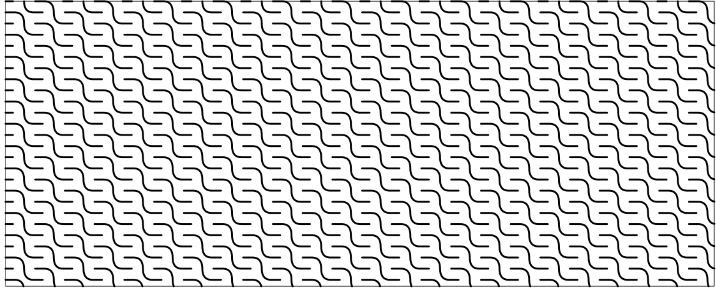

Wave
Fabric

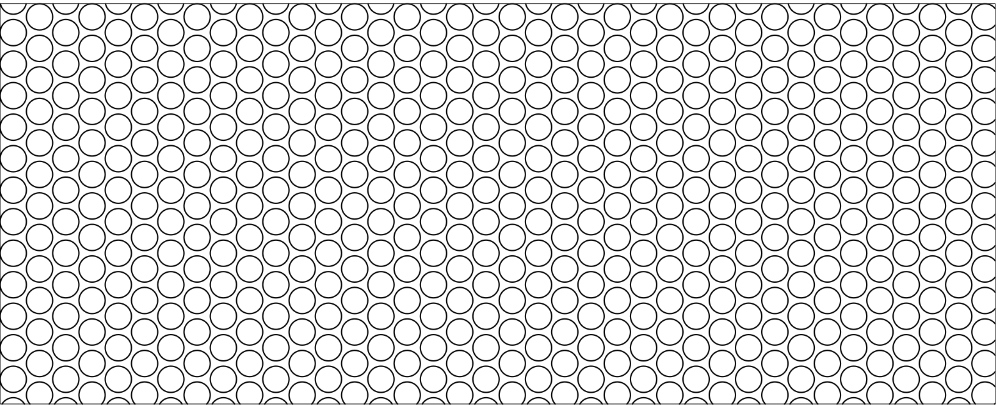

Circle

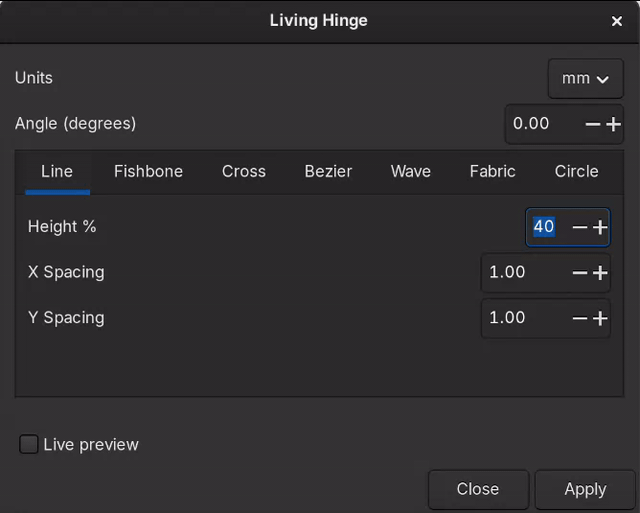

Screenshots

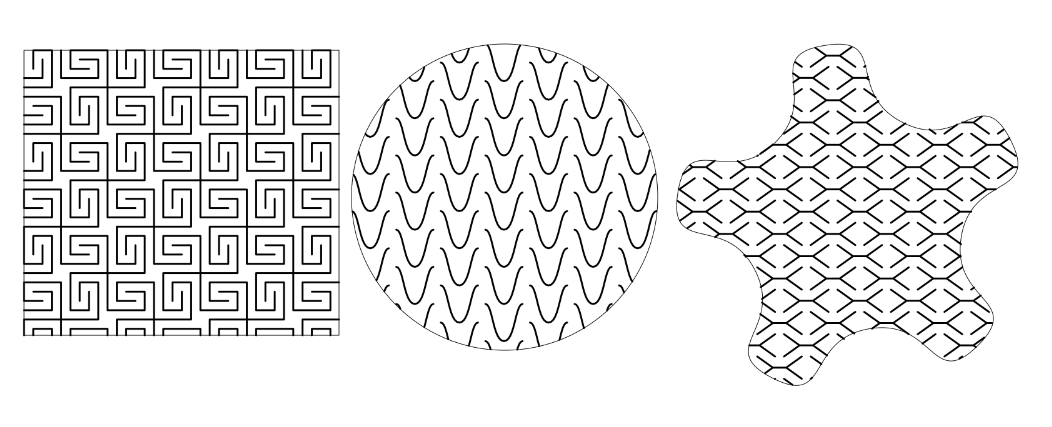

Patterns truncate to shapes.

Acknowledgements

Inspiration, examples, and code came from:

The original Living Hinge extension for Inkscape.
https://github.com/siteswapjuggler/Inkscape_LivingHinge

Hatchfill from Evil Mad Scientists and their Eggbot extensions.
https://github.com/evil-mad/EggBot/

The wonderful Meerk40t and its Laser Tools of which each of these patterns exist (and more).
https://github.com/meerk40t
